Description

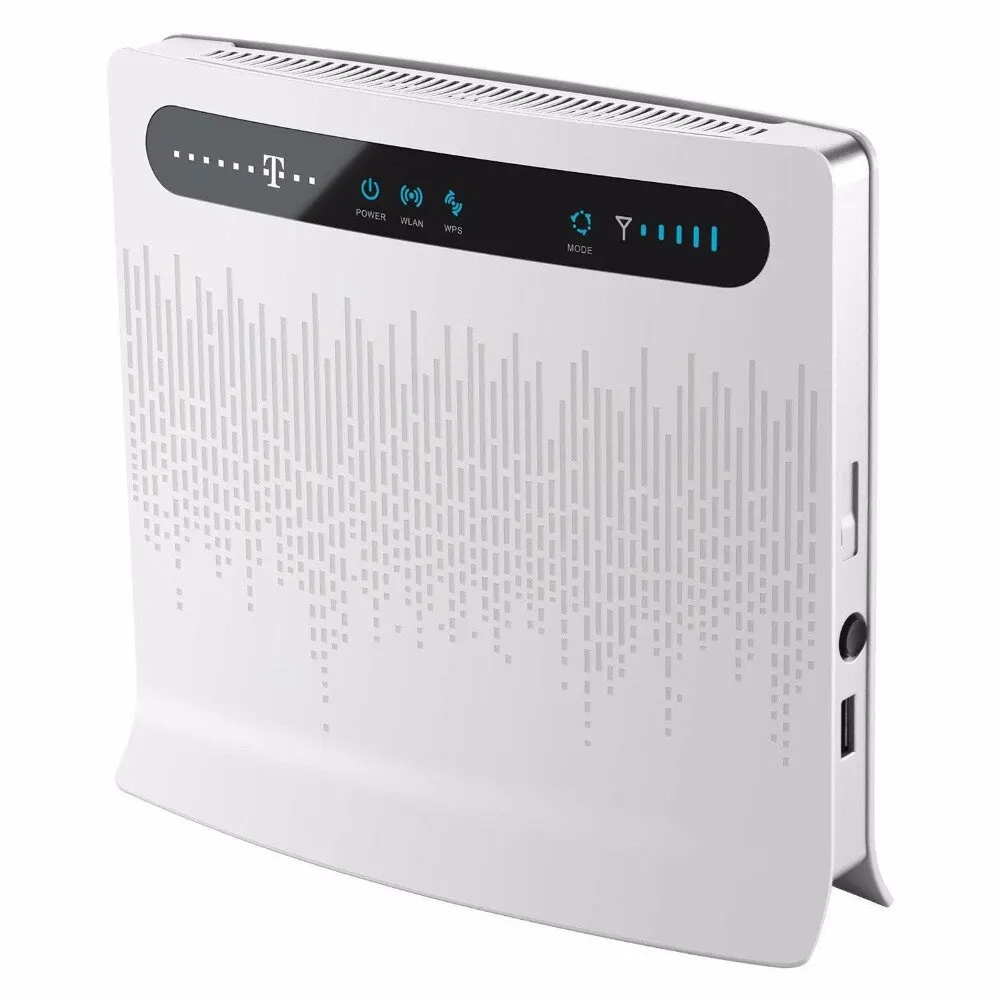

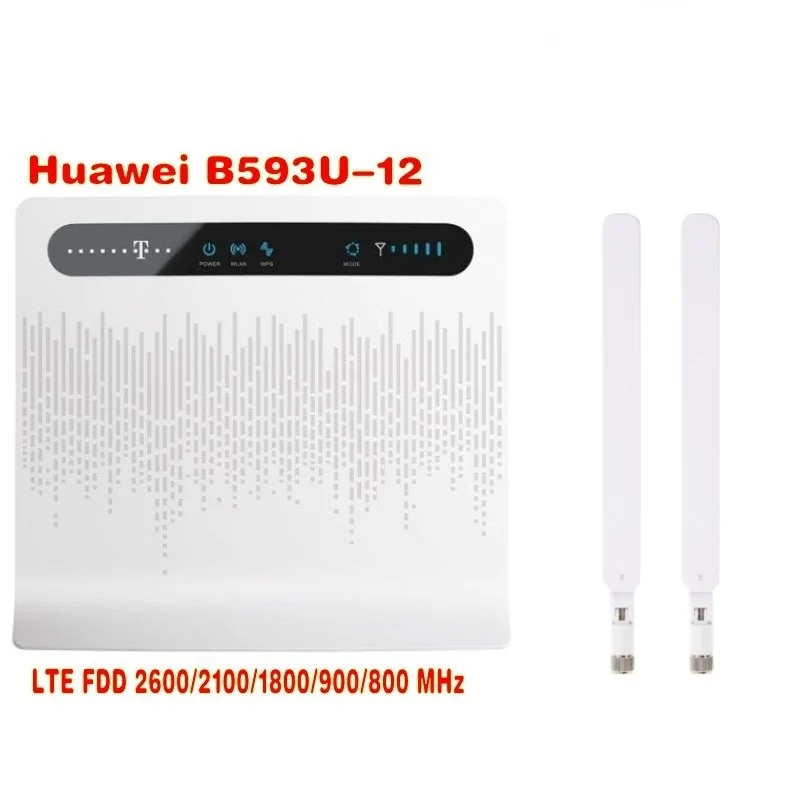

Unlocked Huawei B593 B593u-12 +2pcs Antenna
Network Technology:
4G: LTE FDD 2600/2100/1800/900/800 MHz
3G: DC-HSPA+/HSPA/HSUPA/HSDPA/UMTS 2100/900 MHz
2G: GSM/GPRS/EDGE 1900/1800/900/850 MHz
Features:

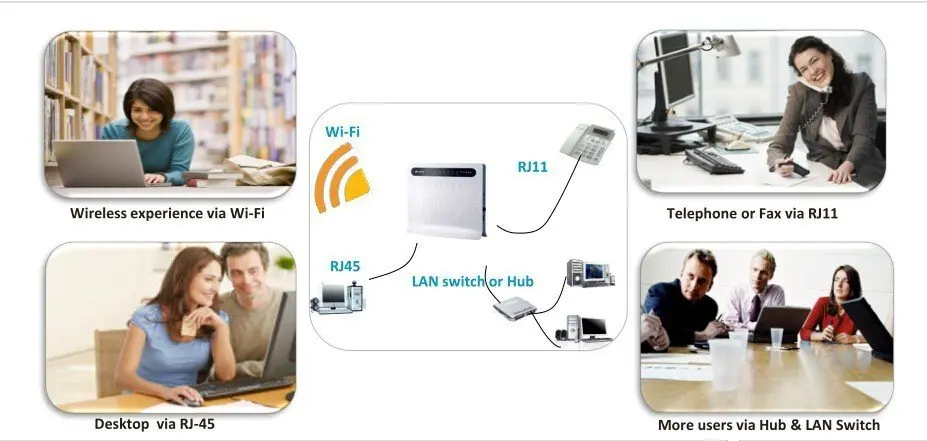

Able to connect via Wi-Fi and RJ45 connector
Supports wired and wireless network access
Supports up to 32 devices via Wi-Fi and 4 devices via Ethernet interface
Hassle free installation, just Plug-N-Play
Friendly user interface
SIM Lock released for usage with any 3G / 4G network worldwide
2 x SMA-female External Antenna slot
Unlimited operation time
SIM type: Standard SIM card
Wi-Fi 802.11b/g/n
Built-in UMTS and WLAN high gain antenna
Data, and SMS Service
PORTS:
* 4 x LAN
* HUAWEI B593u-12: 1 x USB
Transmission speed 4G (MAX)
* Download 100 Mbit
* upload 50 Mbit / s
TRANSMISSION SPEED 3G (MAX)
* download 42.2 Mbit / s
* upload 5.76 Mbit / s
WI-FI: Wi-Fi(802.11 b / g / n)
Addistional antenna location: two antenna ports
SIZE: 190 mm x 35 mm x 176 mm
WEIGHT: 500g
Operation systems it s compatible with:
* Windows 2000/ Windows XP/ Windows Vista/ Windows 7
* Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7
* Linux
CONNECTING PC TO THE MODEM WLAN CONNECTION
1. Turn on your modem POWER button.
2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.
3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

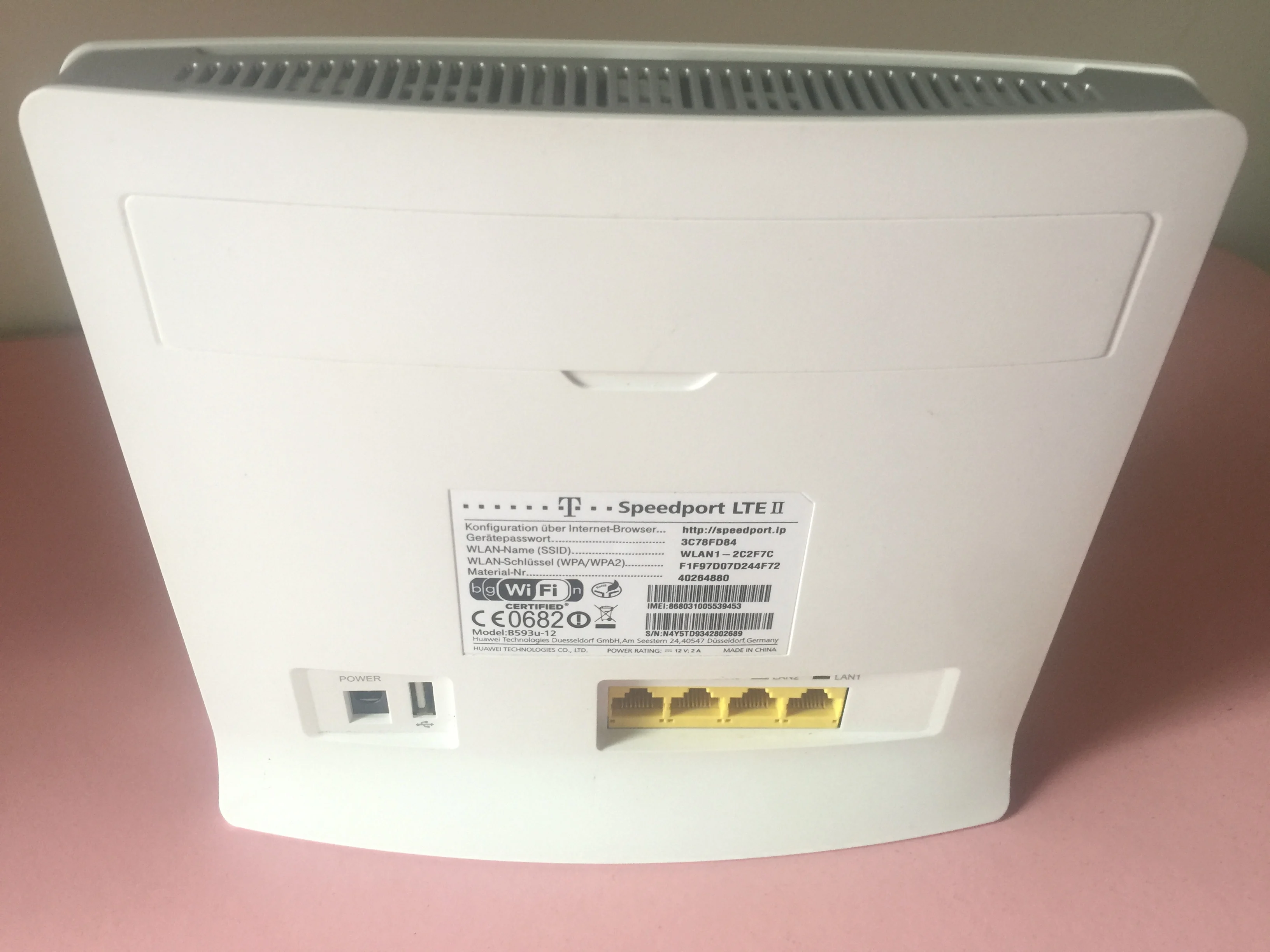

Note: * The SSID and network security key can be found on the label on the back of the modem.
* You can review and change the WLAN security settings for the network-management page under General Settings, WLAN Settings, Security.
4. If the PIN code request is active, log network management page (http://192.168.1.1 ) and enter the correct PIN code in the field provided

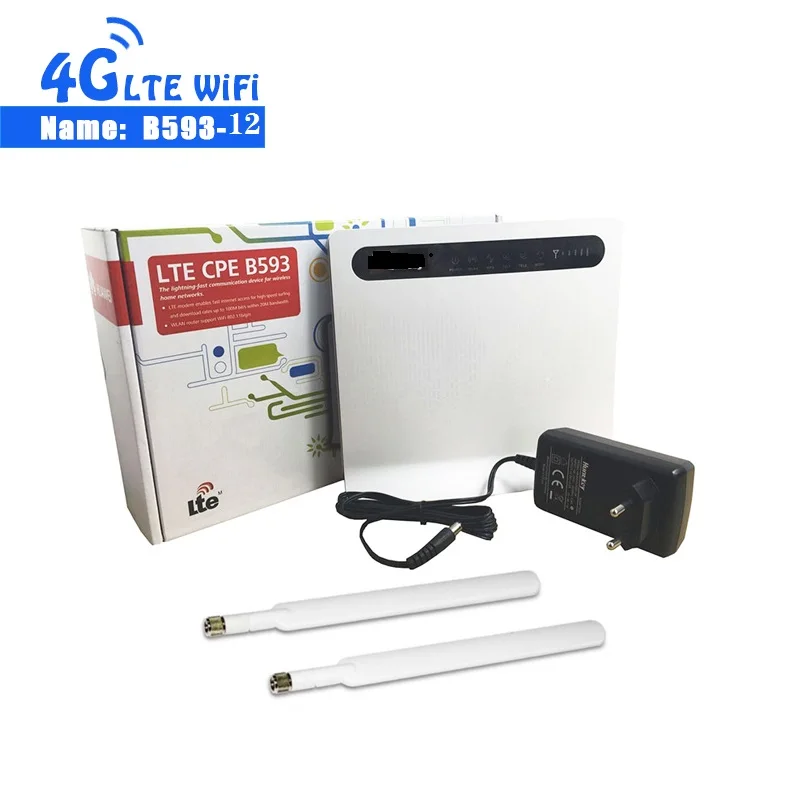

Package Contents:
1* router for b593u-12
1* eu power adapter
1* wlan network cable
2* antennas
